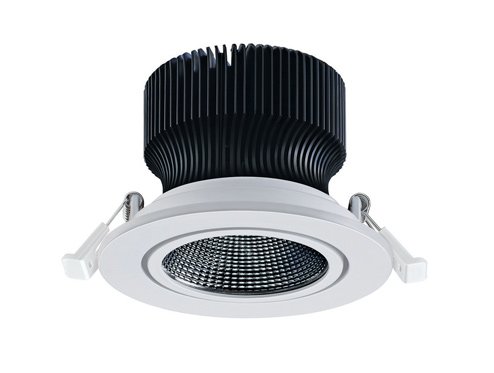

LOCUS LED COB - Retail LED Lighting is a high performance recessed spot range designed to provide a natural lighting effect for accent lighting applications. It is also an environmentally friendly solution that provides instant energy savings and much longer lifetime. With symmetrical lighting distribution, this range of retail LED lighting is available in Round & Square configurations.
Long lasting LED lighting solution with energy saving > 50%*
Epoxy White Powder coated pressure diecast aluminum housing luminaire
High-end material and finish for decorative applications; dedicated optics for glare control & uniform light distribution
Due to its slim design, it fits easiliy in most type of ceilings.
Available in fixed & adjustible versions
Long Life of 50,000 Hrs at L70 with easy installation & low maintenance
Suitable for Recessed Mounting with Modular and grid ceilings with 2 nos. spring loaded mounted clip
WW : 3000K
NW : 4000K
Surge Protection >2.5KV
THD <10%
Residential Segment
Commercial Segment
Retail Segment
Educational Segment
| Cat. Ref. | Rated System Wattage (W) | Rated Input Voltage (VAC) | Input Current (A) | CRI | Power Factor | Packing Case Lot (Nos.) |
| IRDLR61RD-03XXC | 3±10% | 240 | 0.0139 | >80 | >0.9 | 10 |
| IRDLR61RD-06XXC | 6±10% | 240 | 0.0278 | >80 | >0.9 | 10 |
| IRDLR61RD-09XXC | 9±10% | 240 | 0.0417 | >80 | >0.9 | 10 |
| IRDLR61RD-12XXC | 12±10% | 240 | 0.0556 | >80 | >0.9 | 10 |
| IRDLR61RD-15XXC | 15±10% | 240 | 0.0694 | >80 | >0.9 | 10 |
| IRDLR61RD-18XXC | 18±10% | 240 | 0.0833 | >80 | >0.9 | 10 |
| IRDLR61RD-24XXC | 24±10% | 240 | 0.1111 | >80 | >0.9 | 10 |
| IRDLR21RD-30-CW | 30±10% | 240 | 0.1389 | >80 | >0.9 | 10 |
| IRDLR21RD-40-CW | 40±10% | 240 | 0.1852 | >80 | >0.9 | 10 |
