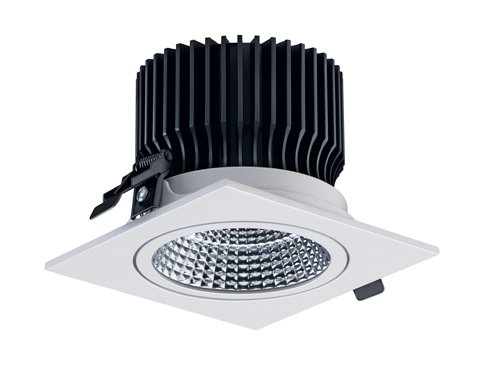

LOCUS LED COB is a high performance recessed spot range designed to provide a natural lighting effect for accent lighting applications, as well as instant energy savings and much longer lifetime – an environmentally friendly solution. With symmetrical lighting distribution, the range is avalaibale in Round & Square configurations.
- Best suited for
-
Retail Lighting
-
LED based Lighting Solution
Long lasting LED lighting solution with energy saving > 50%* -
Pressure die cast aIuminum housing
Epoxy White Powder coated pressure diecast aluminum housing luminaire -
High Efficiency
High-end material and finish for decorative applications; dedicated optics for glare control & uniform light distribution -
Slim Design
Due to its slim design, it fits easiliy in most type of ceilings.
Available in fixed & adjustible versions -
Long Life
Long Life of 50,000 Hrs at L70 with easy installation & low maintenance -
Mounting
Suitable for Recessed Mounting with Modular and grid ceilings with 2 nos. spring loaded mounted clip -
Choice of Color Temperatures
WW : 3000K
NW : 4000K -
IB LED Assurance
Surge Protection >2.5KV
THD <10% -
Applications
Residential Segment
Commercial Segment
Retail Segment
Educational Segment
| Cat. Ref. | Rated System Wattage (W) | Rated Input Voltage (VAC) | Input Current (A) | CRI | Power Factor | Packing Case Lot (Nos.) |
| IRDLR61SQ-03XXC | 3±10% | 240 | 0.0278 | >80 | >0.9 | 10 |
| IRDLR61SQ-06XXC | 6±10% | 240 | 0.0417 | >80 | >0.9 | 10 |
| IRDLR61SQ-09XXC | 9±10% | 240 | 0.0556 | >80 | >0.9 | 10 |
| IRDLR61SQ-12XXC | 12±10% | 240 | 0.0694 | >80 | >0.9 | 10 |
| IRDLR61SQ-15XXC | 15±10% | 240 | 0.0833 | >80 | >0.9 | 10 |
| IRDLR61SQ-18XXC | 18±10% | 240 | 0.1111 | >80 | >0.9 | 10 |
| IRDLR61SQ-24XXC | 24±10% | 240 | 0.1852 | >80 | >0.9 | 10 |
