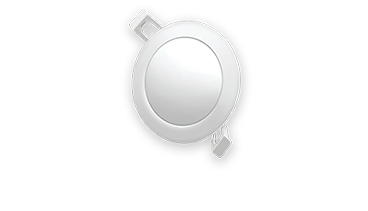

This sleek LED Downlighter is intended for recessed mounting applications. It has light guiding plate which aids uniform distribution of light and narrow flange makes it aesthetically appealing.
-
Housing
Epoxy white powder coated die cast aluminium housing
-
Optics
Efficient PMMA front visor
-
Long Life
25000 hours at L70
-
Mounting
Recessed mounting provision with 2 nos. spring loaded mounting clip
-
Available CCTs
Warm White : 3000K
Natural White : 4000K
White : 5700K
Cool White :6500K -
IB LED Assurance
Surge Protection >2.5KV
THD <20%
-
Applications
Retail
Health Care
Education
Commercial
| Cat. Ref. | System Wattage (W) | Rated Input Voltage (VAC) | Input Current (A) | CRI | Power Factor | Case Lot |
|---|---|---|---|---|---|---|
| IRDLR21RD-06XX | 6 | 240 | 0.0269 | >80 | >0.93 | 10 |
| IRDLR21RD-09XX | 9 | 240 | 0.0403 | >80 | >0.93 | 10 |
| IRDLR21RD-12XX | 12 | 240 | 0.0538 | >80 | >0.93 | 10 |
| IRDLR21RD-15XX | 15 | 240 | 0.0672 | >80 | >0.93 | 10 |
| IRDLR21RD-18XX | 18 | 240 | 0.0806 | >80 | >0.93 | 10 |
| IRDLR21RD-24XX | 24 | 240 | 0.1075 | >80 | >0.93 | 10 |
Available CCTs
